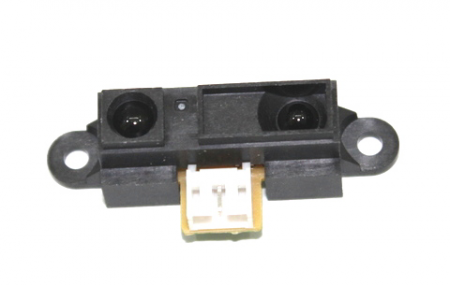

GP2Y0A21YK0F is an Infrared distance measuring sensor unit capable of measuring distance from 10 to 80cm.
It is composed of an integrated combination of PSD (position sensitive detector), IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.

Specifications

• Distance measuring range: 10 to 80cm
• Analog output type
• Refresh rate: 36ms
• Supply voltage: 4.5 to 5.5 V
• Average current consumption: 33 mA

Package size: 29.5×13×21.6mm
